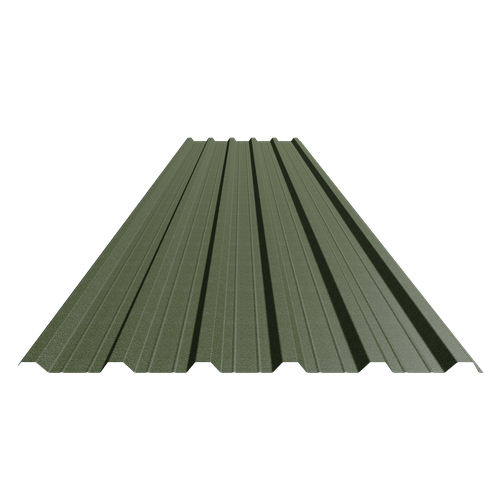

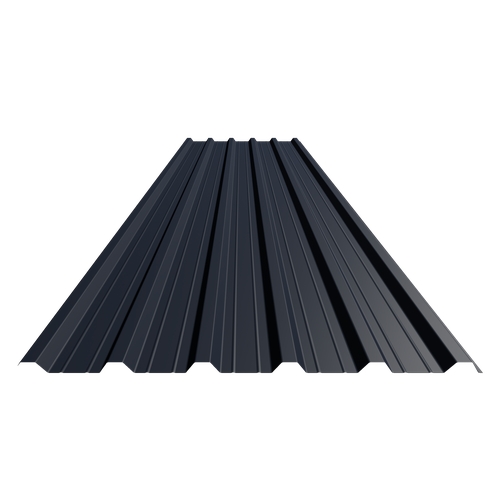

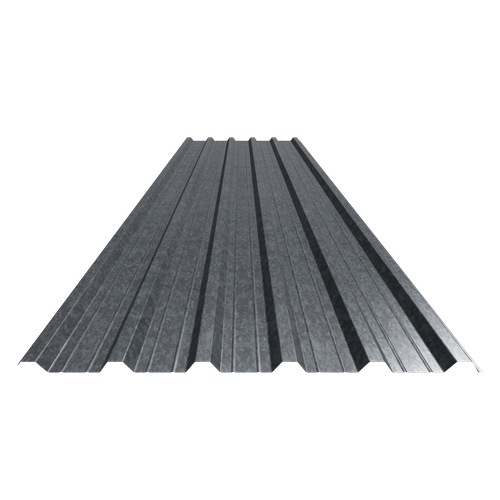

Accord 32/1000 (L) Box Profile – Mini-Ribbed Roofing & Cladding Sheet
The Accord 32/1000 (L) Box Profile is our original trapezoidal steel sheet, designed for roofing and wall cladding across industrial, agricultural, and modular buildings. Featuring mini-ribs as standard for added rigidity and visual texture, this profile can also be supplied without ribs on special request—contact our sales team to specify.
Technical Details
- Cover Width: 1000mm
- Pitch: 200mm
- Pan Width: 120mm
- Profile Height: 32mm
- Crown Width: 35mm
- Length Range: 0.8m to 12.2m (cut to order)
- Finish Options: Galvanised, Polyester Paint, Plastisol, Corro-Print
- Mini-Ribs: Included as standard (optional removal on request)
- Crank Curving: Available
- Liner Option: Anti-condensation backing available
- Colours: Wide range available across finishes
Key Features
- Versatile profile for roofing and wall cladding
- Mini-ribs enhance rigidity and reduce oil-canning
- Crank curved for barrel roofs and arched structures
- Anti-condensation liner option for internal environments
- Cut to length for efficient site handling
- Compatible with SIPs panels, steel frames, and timber builds
Applications
- Industrial and agricultural buildings
- Residential extensions and garden rooms
- Modular and offsite construction
- Retail and hospitality facades
- Roofing and wall cladding for SIPs structures
Accord 32/1000 (L) is a trusted, high-performance sheet with flexible finish and profile options. Contact us to request samples, confirm colour availability, or specify crank curving and liner requirements.
