Kingspan KS1000SRW Sinusoidal
Kingspan KS1000SRW Sinusoidal
Order Online
| Quantity | Length ?Total length of the top sheet of steel. The steel liner and insulation will be shorter by the size of the cutback. | Unit | Cutback (mm) ?Typical Values: Overhang: 75mm Endlap: 150mm Minimum: 20mm Maximum: 300mm | Overlap ?As viewed from the gutter end of the sheets. | |
|---|---|---|---|---|---|
Item Specifics
Profile: Kingspan KS1000SRW Sinusoidal
Profile Information
| Cover Width | 1.000m |
| Minimum Length | 1.800m |
| Maximum Length | 12.000m |
| Minimum Pitch | 4° |
Finish: XL Forte
Product Details

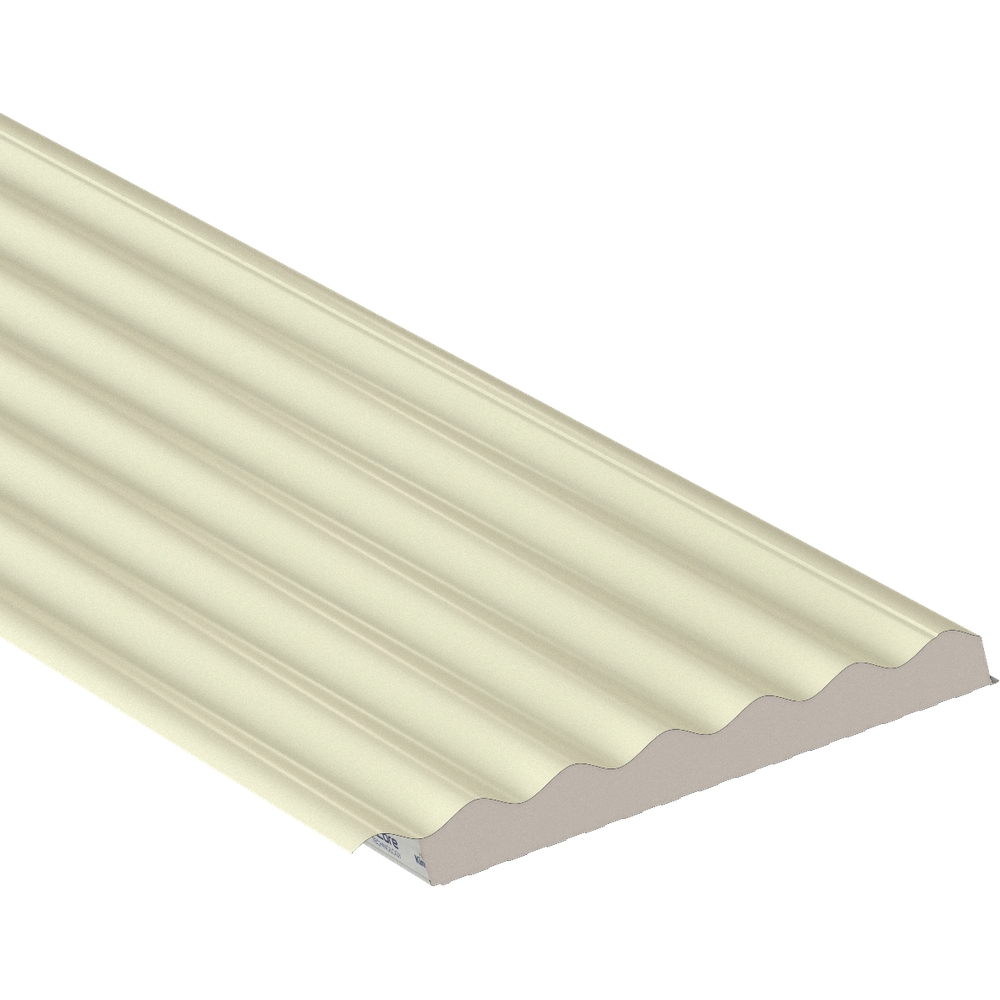

Kingspan KS1000SRW Sinusoidal – Insulated Roof Panels with a Curvy Profile
The Kingspan KS1000SRW Sinusoidal is a high-performance, insulated roof panel featuring a smooth, repetitive wave profile. Designed for through-fix installation, it combines visual appeal with thermal efficiency, making it ideal for pitched roofs of 4° or more after deflection.
Product Highlights
- Profile: Sinusoidal (curvy/wave)
- Core: QuadCore or PIR insulation
- Panel Thicknesses: 40mm, 60mm or 80mm
- Thermal Conductivity: λ = 0.019 W/m.K
- Length Range: Standard 1.8m to 14.5m (non-standard lengths available)
- Air Leakage: ≤ 3m³/hr/m² at 50Pa
- Finishes: XL Forté, Spectrum

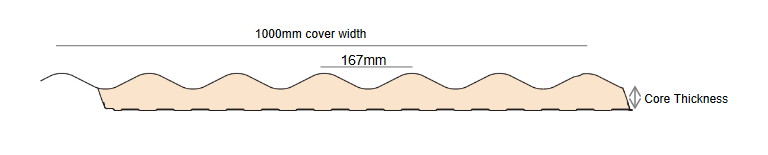

| A - Core Thickness (mm) | 40 | 60 | 80 |
| B - Overall Thickness (mm) | 70 | 90 | 110 |
| U-Value (W/m²K) | 0.46 | 0.32 | 0.25 |
| Weight (kg/m²) | 9.5 | 10.3 | 11.1 |
Key Features
- Distinctive sinusoidal profile for architectural appeal
- Insulated core for thermal and acoustic performance
- Suitable for roof pitches ≥ 4°
- Factory-cut to length for efficient installation
- Fire-rated and air-tight for regulatory compliance
- Available in multiple finishes and internal liners
Applications
- Industrial and commercial roofing
- Architectural builds requiring curved aesthetics
- Energy-efficient envelope systems
- Retrofit and new build steel structures
Reaction to Fire
QuadCore KS1000SRW Roof Panels are classified B-s1,d0, when tested on the internal face of the product, according to the European Reaction to Fire classification system (Euroclasses) BS EN 13501-1: 2018 under the certified name KS1000SRW when using the following internal liners:
- CLEANsafe 15, CLEANsafe 120 and AQUAsafe 55
Roof Applications
QuadCore KS1000SRW Roof Panels are tested to:
- Broof(t4) to BS EN 13501-5: 2016 under the certified name KS1000SRW for panel thicknesses 40 - 80 mm and roof pitch of 0° - 10°.
- Broof(t4) to BS EN 13501-5: 2016 under the certified name KS1000SRW for panel thicknesses 40 - 80 mm and roof pitch of >10°.
The KS1000SRW Sinusoidal panel offers a blend of form and function—ideal for designers seeking visual impact without compromising performance. Contact us to confirm finish options, insulation type, or request a quote.
Pricing
| Description | 0 - 200 | 200 - 500 | 500+ |
|---|---|---|---|
| 40mm Quadcore 2.0 | £48.89 | £45.13 | £41.90 |
| 60mm Quadcore 2.0 | £54.90 | £50.68 | £47.06 |
| 80mm Quadcore 2.0 | £58.34 | £53.85 | £50.00 |
