Plastisol

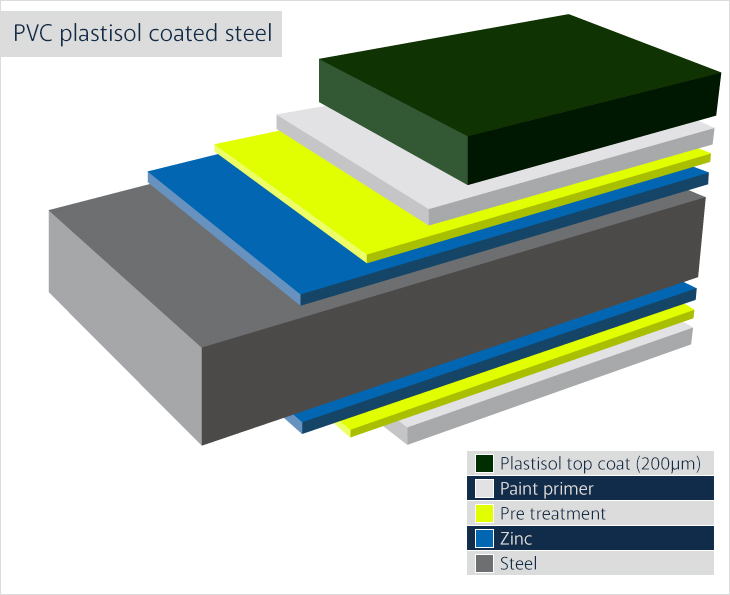

PVC Plastisol coated sheeting is a very high quality galvanised steel sheet with a primer paint and the PVC rolled onto it resulting in a very durable end product that doesn't fade or scratch easily.
Fire: When tested, Class 0 in accordance with building regulations BS476 part 6 1989 and Part 7 1987.
Benefits
- 200µm durable, abrasion-resistant topcoat
- Leathergrain embossed finish
- Wide colour range
- Galvanised substrate to BS EN 10346:2009 and primed undercoat offering excellent corrosion resistance
- Manufacturers coating guarantee of up to 25 years to first maintenance*
Please note: Coating warranty must be applied for at point of order
Anti-Condensation Liner Option
Anti-condensation Dripstop liner is available as an optional extra for this product.
Finish Properties
| Property | Unit | Value | Test Standard | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal organic coating thickness | µm | 200 | EN13523-1 | ||||||||
| Gloss (60°) | % | 15-35 | EN13523-2 | ||||||||
| Scratch resistance | g | 3500 | EN13523-12 | ||||||||
| Abrasion resistance (Taber, 250 rev, 1kg) | mg | <12 | EN13523-16 | ||||||||
| Flexibility (reverse impact) | J | ≥18 | EN13523-5 | ||||||||
| Adhesion (cross hatch) | % | 100 - Pass | EN13523-6 | ||||||||
| Minimum bend radius | T | 0 T@16°C | EN13523-7 | ||||||||
| Corrosion resistance: | |||||||||||
|
|||||||||||
| Max continuous operating temp | °C | 60 | |||||||||
| Reaction to fire | Class 0 | BS476 part 6 & 7 | |||||||||
| Resistance to fire | C-s3,d0 | BS EN 13501 | |||||||||
| External Fire Performance | Broof T4,T3,T2,T1 | BS EN 13501 | |||||||||
General notes:The figures contained in this table are typical for the material and do not constitute a specification.
