14/3 Corrugated Steel Sheets - Made To Order
14/3 Corrugated Steel Sheets - Made To Order
£-.--
| Quantity | Length | Unit | |
|---|---|---|---|
Product Details

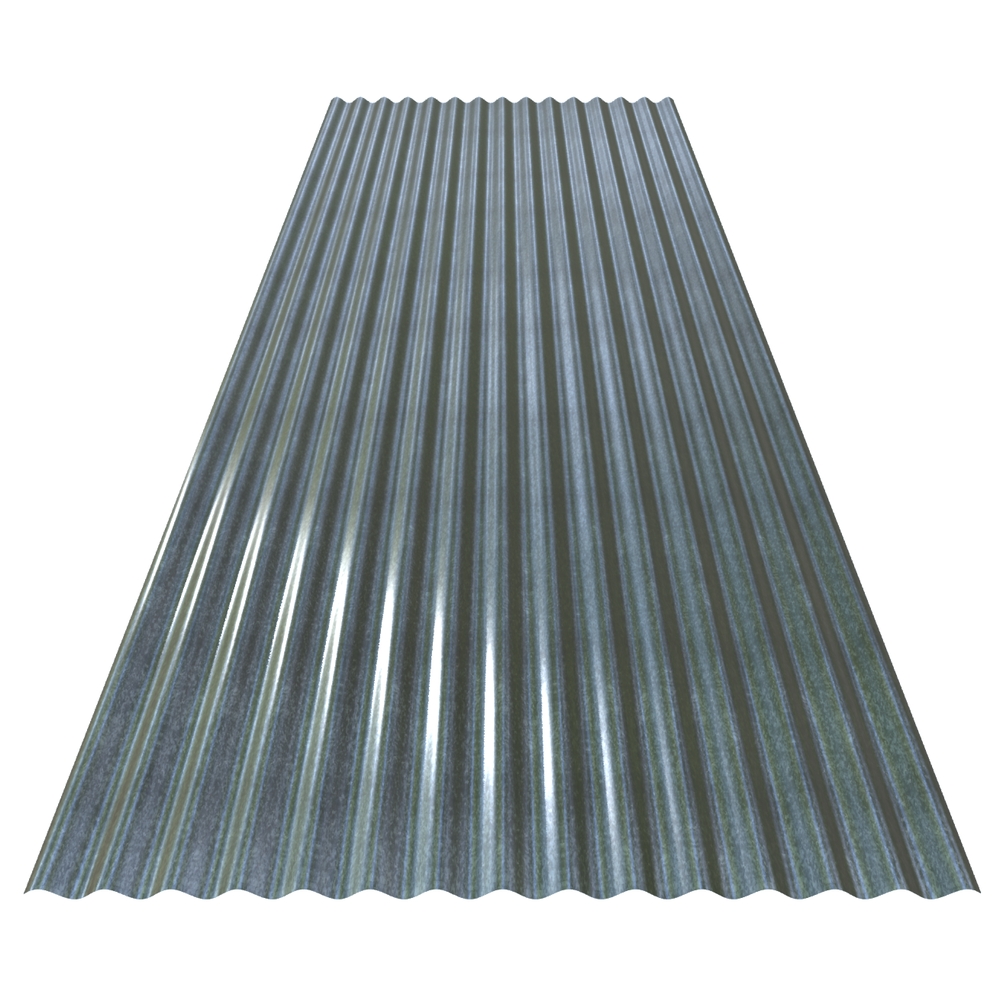

14/3 Corrugated Metal Sheets – Custom Lengths for Roofing, Cladding & More
Our 14/3 corrugated metal sheets are available in a wide range of colours, gauges, and finishes to suit roofing, cladding, fencing, and general building applications. Sheets are supplied cut to size from 0.5m to 12.2m and can be specified with an optional anti-condensation liner for internal environments. Corrugated metal roof sheets are also known as tin roofing, sinusoidal or corrugated iron, have been around for many years and are still very popular today. The traditional look of corrugated roofing sheets means that they are usually specified as the only roof cladding to be used in conservation areas.
Product Options
- Profile: Classic 3" Corrugated Profile (14/3 Corrugated)
- Lengths: From 0.5m to 12.2m (cut to size)
- Colours: Wide range of standard and custom colours
- Gauges: Various thicknesses available
- Finishes: Galvanised, polyester, plastisol, and more
- Liner Option: Anti-condensation backing available
- Compatible with:
- 14/3
- 13.5/3
- 13/3
- 12/3
- 10/3
- 8/3
Applications
- Roofing for agricultural, industrial, commercial, and domestic buildings
- Wall cladding and façade systems
- Fencing panels and boundary enclosures
- Internal linings and shed construction
- Refurbishment and new-build projects
Key Features
- Traditional corrugated profile with excellent water runoff
- Durable steel construction with weather-resistant coatings
- Custom lengths reduce waste and simplify installation
- Anti-condensation liner helps control internal moisture
- Available from stock or made to order
Whether you're cladding a barn, roofing a workshop, or fencing a boundary, our 14/3 corrugated sheets offer a flexible, high-performance solution. Contact us to request samples, confirm availability, or get a tailored quote.
| Cover Width | 990.6mm | |
| Overall Width | 1070mm - 1125mm | |
| Pitch | 76.2mm | |
| Profile Height | 19mm | |
| Recommended End Lap | Roof | 300mm |
| Walls | 100mm | |
| Maximum Purlin Centres (Roof)* | 0.5mm | 1000mm |
| 0.7mm | 1400mm | |
| Maximum Rail Centres (Walls)* | 0.5mm | 1200mm |
| 0.7mm | 1600mm | |
| Maximum Unsupported Overhang | 0.5mm | 200mm |
| 0.7mm | 300mm | |
| Recommended Main Fixing Consumption | 5/m² | |
| Recommended Side Lap Fixing Centres | 300mm - 500mm | |
*Maximum centres are typical for UK mainland buildings, however please check suitability with a structural engineer for your specific project.
Pricing
| Description | Price |
|---|---|
| 14/3 Corrugated 0.5mm Galvanised | £11.00 (£9.17+VAT) |
| 14/3 Corrugated 0.7mm Galvanised | £15.65 (£13.04+VAT) |
| 14/3 Corrugated 0.5mm Polyester Paint | £14.84 (£12.37+VAT) |
| 14/3 Corrugated 0.5mm Plastisol | £19.63 (£16.36+VAT) |
| 14/3 Corrugated 0.7mm Plastisol | £26.96 (£22.47+VAT) |
| 14/3 Corrugated 0.7mm Corro-Print | £34.20 (£28.50+VAT) |
| 14/3 Corrugated 0.7mm GraniteHDX | £27.00 (£22.50+VAT) |
