T-Bar Insulation Support
T-Bar Insulation Support
£-.--+VAT
Item Specifics
Finish: Galvanised
Galvanised sheeting is a high quality hot dipped zinc coated steel with no additional finishes added. Now the base material for Polyester paint and PVC Plastisol coated roofing sheets, galvanised steel sheets have been used for over 100 years.
It is worth noting that galvanised steel will weather over time and become duller. Also galvanised steel can vary in finish and we highly recommend taking a coated sheet if colour is an issue.
As long as the material is fitted and treated properly then it can last a number of years, however the material is very susceptible to corrosion especially the steel underneath the zinc coating. We do not recommend using galvanised sheets within 3 miles of the coast as coastal environments can significantly decrease lifespan.
Galvanised steel sheets can sometimes be confused with stainless steel, however it is important to note these are different products.
Please be aware that galvanised sheets cannot be painted until they have weathered. This usually takes approx 6 months. If a more durable coloured finish is required please consider polyester painted or PVC plastisol sheets
Galvanised steel is not a colour and surface finish is not consistent. As the steel weathers you will see discolouration in areas. Over time the surface will become rougher as the material weathers. If you require a more consistent finish we would recommend using a coated steel finish such as polyester paint or PVC plastisol.
Care should also be taken when storing galvanised sheets. We recommend storing indoors at a consistent temperature to avoid water ingress and weathering whilst still stacked. Also degreasing the sheets is recommended to remove any excess rolling oil as this may cause reactions when the steel begins to weather.
Finish Properties
| Property | Unit | Value | Test Standard |
|---|---|---|---|
| Standard zinc coating | (g/m2) | 275 (Z275) | |
| Minimum yield stress | (N/mm2) | 220 (S220GD) | EN 10147:2000 |
| Bending and profiling quality | DX51D | EN 10142:2000 | |
| Estimated time to first maintenance*: | |||
| Dry and unpolluted | (years) | 20-50 | |
| Suburban and rural | (years) | 5-10 | |
| Industrial and urban | (years) | 2-5 | |
| Coastal | (years) | 1-5 | |
| Fire classification | A1 | BS EN 13501 |
Product Details

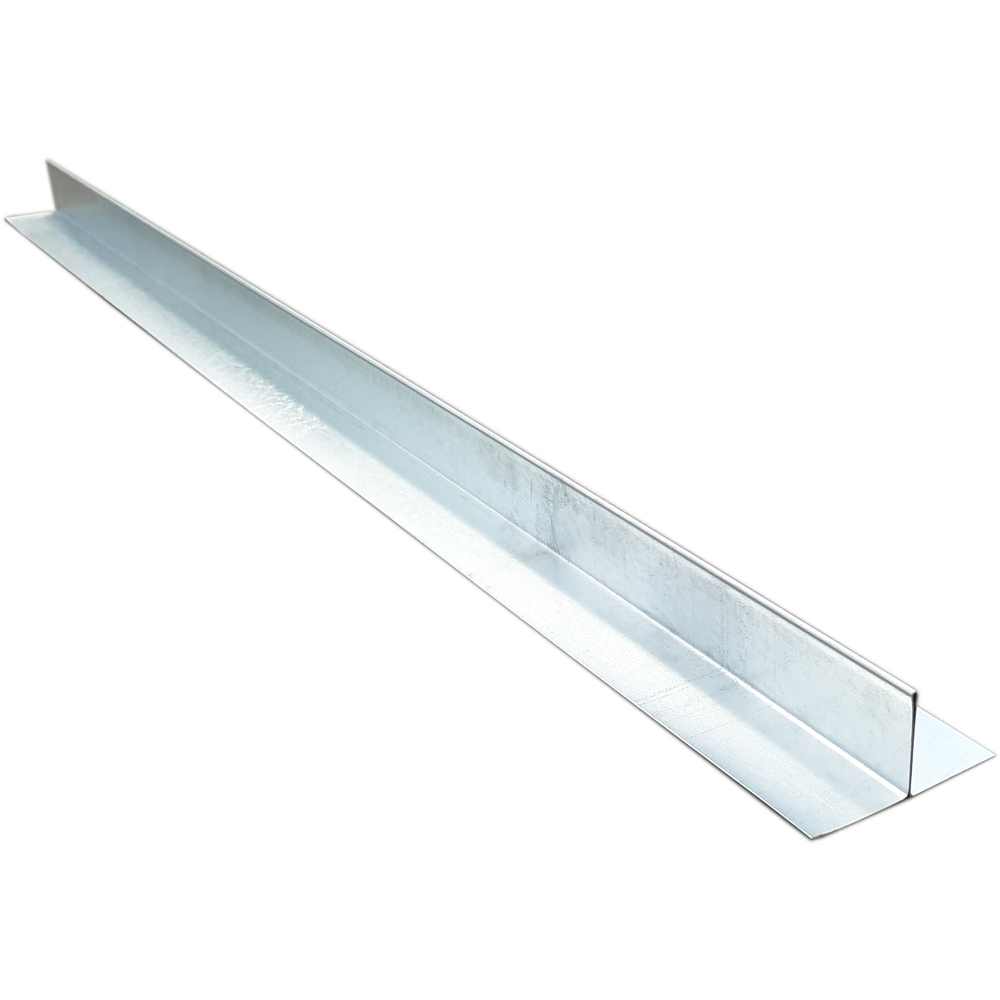

Accord T-Bar Insulation Supports – 3m Galvanised Steel for Rigid Board Installation
The Accord T-Bar Insulation Support is a robust, galvanised steel profile designed to support rigid insulation boards of 40mm or thicker across long spans. With a total width of 80mm—formed by 40mm wings and a 40mm upstand—it provides stable, continuous support for thermal boards in roofing and wall applications.
Product Specifications
- Length: 3m standard
- Material: 0.7mm galvanised steel
- Profile: T-bar with 40mm wings and 40mm vertical upstand
- Overall Width: 80mm
- Application: Supporting rigid insulation boards ≥ 40mm
Key Features
- Provides continuous support for insulation over long spans
- Galvanised finish for corrosion resistance
- Compatible with PIR, phenolic, and mineral wool boards
- Ideal for SIPs panels, steel frames, and retrofit systems
- Can be mechanically fixed or bonded depending on substrate
Applications
- Roof and wall insulation systems
- Modular and offsite construction
- Steel-framed buildings
- Timber SIPs structures
- Retrofit insulation upgrades
Accord T-Bar supports offer a simple, effective way to span insulation boards with minimal thermal bridging. Contact us to confirm stock availability, request bulk pricing, or discuss installation methods.
Pricing
| Description | Price |
|---|---|
| Accord T-Bar Insulation Support 0.7mm Galvanised 3m (40mm x 40mm x 40mm x 40mm) | £12.84+VAT |
