Curved Steel Flashings
Curved Steel Flashings
We now have the ability to manufacture curved steel flashing's.
Please note it is not possible to put a welted edge on a curved flashing, so the edges and corners will be sharp and not very visually appealing. The flashings will be functional only and should not be considered as an aesthetic item, and as such we will not accept any returns or remakes for aesthetic reasons.
For Pricing and more information please contact us:
Call 01384 273811
or email sales@steelroofsheets.co.uk
Product Details

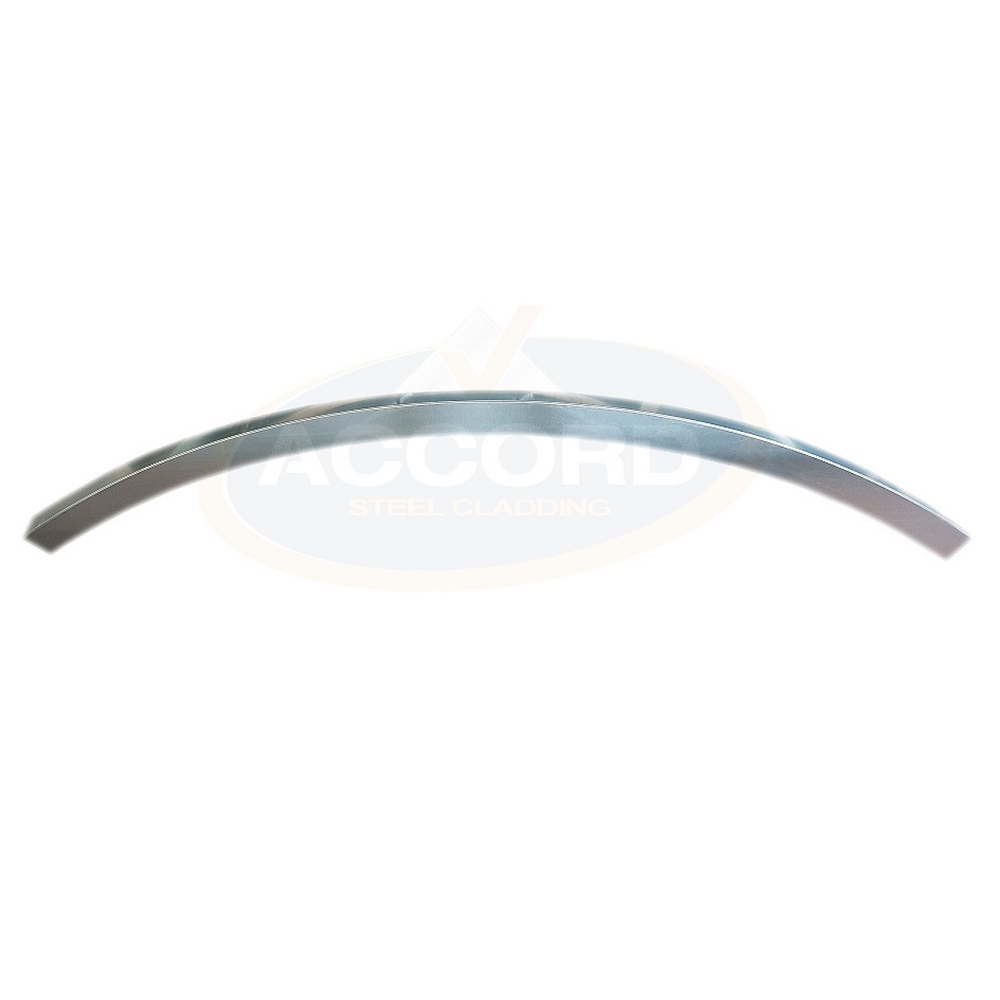

Curved Steel Flashings – Custom Radius Flashings for Curved Roofing
Our Curved Steel Flashings are custom‑made to match your radius, sheet profile and colour requirements. Designed to suit both curved 14/3 corrugated sheets and cranked box profile sheeting, these flashings provide a professional finish for your curved roofing or cladding project.
Product Details
- Material Thickness: 0.7mm steel
- Radius: Fully custom‑formed to suit your project
- Wing Size: to suit your project (min 100mm)
- Length: Up to 3m
- Internal Angle: 90°
- Colours: Wide range of standard and custom options
Available Finishes
- Galvanised steel
- Polyester paint finish
- Plastisol coated steel
- Granite® HDX high‑performance coating
- Optional powder coating to any custom RAL colour
Key Features
- Curved to match your sheet radius
- Compatible with curved corrugated and cranked box profile sheets
- Manufactured from durable 0.7mm steel for long‑term performance
- Wide choice of coatings for corrosion resistance and aesthetics
- Ideal for sealing, finishing and weatherproofing curved roof edges
- Custom lengths and angles available
Typical Applications
- Curved corrugated roofing projects
- Cranked box profile roofs
- Barrel‑vault and arched roof structures
- Nissen huts and Romney huts
- Dutch barns and agricultural curved buildings
- Commercial and industrial curved roof installations
Important Notes
- It is not possible to put a welted edge on a curved flashing, so the edges and corners will be sharp. For this reason, we do not recommend using curved flashings on a building where the trims will be at head height or within reaching distance (e.g a shepherds hut).
- Curved flashings should be considered functional only and should not be considered as an aesthetic item, and as such we will not accept any returns or remakes for aesthetic reasons.
Our curved steel flashings provide a clean and weather‑resistant finish for any curved roofing system. With full customisation of radius, colour and coating, they ensure a match to your sheets and a long‑lasting professional result.
