JI Vulcasteel FIRE
JI Vulcasteel FIRE

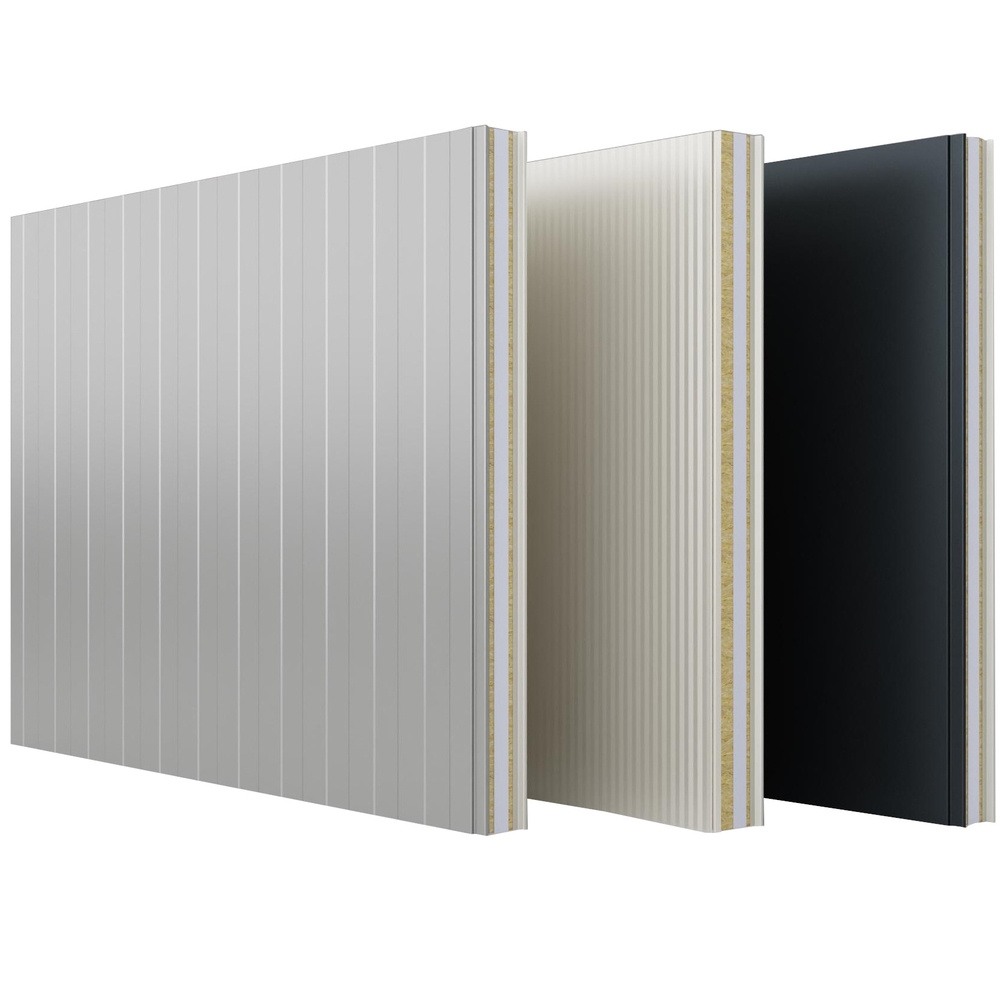

The JI Vulcasteel Wall 1130TF FIRE is an insulated wall panel with visible fixing, developed for applications where certified fire resistance is required. It features a high-performance stone wool core, ensuring effective fire protection without the need for additional on-site sealing. Available in thicknesses up to 240 mm, the panel combines strong fire performance with excellent thermal and acoustic insulation. Designed for fast and flexible installation - both horizontally and vertically - the sandwich panel is suitable for interior and exterior applications across agricultural, industrial, and commercial projects. It is an ideal solution for buildings where fire safety is a key requirement.
Due to current market fluctuations, this product will need to be priced on a project-by-project basis.
Please send an email to sales@steelroofsheets.co.uk or give us a call on 01384 273811 for a quote.
Product Details
Dimensions
- Length:
- Min. 2500.0mm/ max. 14000.0mm
- Width:
- Max. 1130.0mm
Insulation
- Core:
- Mineral Fiber core
- Fire classification :
- A2-s1,d0 (for all coatings except HPS 200 Ultra) according to EN 13501-1:2019
Reference standards
- Galvanized steel:
- EN 10346:2015 - tolerances according to EN 10143:2006
- Coil coating:
- EN 10169:2022
- Tolerance:
- EN 14509:2013 (Geometry)
- Calculations:
- EN 14509:2013
Insulation table
| Insulation table Thickness (mm) | U (W/m²K) | R (m².K/W) | Weight (kg/m²) |
|---|---|---|---|
| 80.0 | 0.53 | 1.85 | 17.14 |
| 100.0 | 0.43 | 2.3 | 19.14 |
| 120.0 | 0.36 | 2.75 | 21.14 |
| 150.0 | 0.29 | 3.4 | 24.13 |
| 175.0 | 0.25 | 4.0 | 26.63 |
| 200.0 | 0.21 | 4.65 | 29.13 |
| 240.0 | 0.18 | 5.45 | 33.12 |
