TATA Trisomet 333 30mm Standard Length Panels
TATA Trisomet 333 30mm Standard Length Panels
The steel faced insulated panel consists of a trapezoidal external skin with a leathergrain plastisol finish giving the weather face longterm durability. The bright white steel liner finish to the internal skin offers both additional strength and a clean and reflective interior.
This product is no longer available to order online due to price uncertainty.
Please contact our sales team for a price.
Product Details
TATA Trisomet 333 – 30mm Stock Insulated Composite Panels

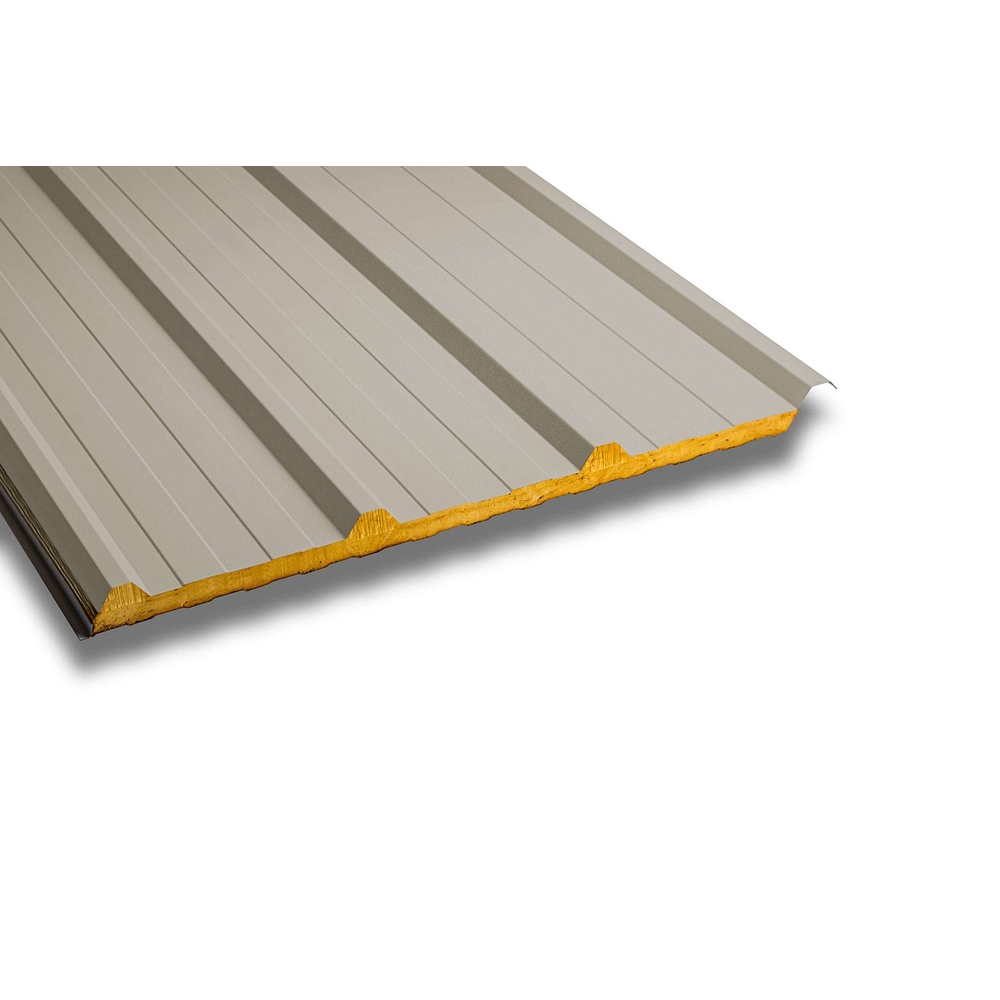

The TATA Trisomet 333 is a steel-faced insulated composite panel featuring a trapezoidal external profile and a bright white internal liner. With a 30mm PIR core, it offers a lightweight, durable solution for roof and wall cladding across industrial, agricultural, and commercial buildings.
Stock Availability
- Lengths: 3.075m, 4.075m, 5.075m, 6.575m
- Colours: Goosewing Grey, Juniper Green, Anthracite
Technical Specifications
- Core Thickness: 30mm
- Cover Width: 1000mm
- Cutback: 75mm
- Direction of Lay: Left to Right
- U-Value: 0.58 W/m²K
- Minimum Roof Pitch: 4°
- External Sheet Gauge: 0.5mm
- External Coating: TATA Colorcoat® LG (Leathergrain Plastisol)
- Internal Sheet Gauge: 0.4mm
- Internal Coating: Bright White Colorcoat® PE15
Key Features
- Durable trapezoidal profile with long-term weather resistance
- Bright white internal liner for clean, reflective interiors
- Lightweight and easy to install
- Cost-effective solution for insulated roof and wall systems
- Ideal for sheds, warehouses, agricultural units, and more
TATA Trisomet 333 panels are ready for dispatch in popular sizes and colours. Contact us for pricing, installation advice, or to request a datasheet.
