Trimmer Cleat
Trimmer Cleat
Product Details
Steel Trimmer Cleats

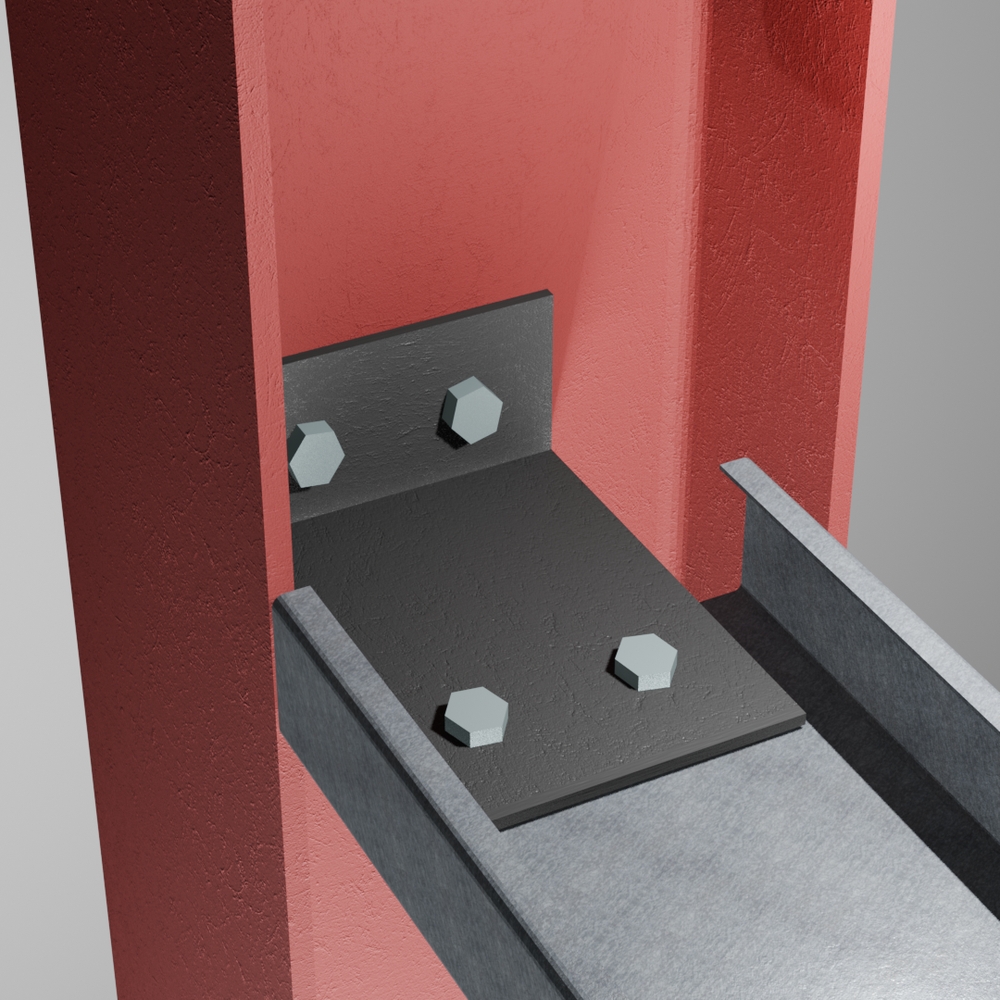

Our offset Steel Trimmer Cleats are designed to allow our C‑section or Z‑purlin rails to be securely installed between RSJ / universal steel columns. The cleat is bolted directly to the column upright through the flange, creating a strong fixing point while maintaining a flush finish with the web.
These trimmer cleats are widely used in mezzanine floors, platform structures and multi‑level steel buildings where precise alignment and strong load‑bearing connections are essential. The offset design ensures the purlin rail sits correctly between columns while keeping a flush finish.
They are also ideal for wall installations where the build‑up thickness of cladding, insulation and internal linings can create spacing challenges. The offset profile of the cleat allows the rail to be positioned correctly without forcing the installer to pack out or modify the column.
Trimmer cleats are supplied in custom sizes to suit your project requirements. Manufactured from heavy‑duty 6mm thick black steel, each cleat is pre‑punched with 18mm diameter holes for use with standard M16 bolts.
Custom sizes are available to suit your project’s exact column spacing, purlin depth and structural layout.
These cleats are suitable for commercial, industrial and agricultural steel‑framed buildings where purlin rails need to be fixed between columns, to allow a flush finish where build-up thickness might be an issue.
Key Features
- Offset trimmer cleat for use with steel C‑section and Z‑purlin rails
- Allows purlins to be fixed between RSJ / universal column uprights with a flush finish. Bolted through the flange for a flush finish with the web.
- Ideal for walls to minimise build‑up thickness.
- Mezzanine floor compatible
- Manufactured from 6mm thick black steel
- Pre‑punched with 18mm holes for M16 bolts
- Custom sizes available to suit your project
- Suitable for commercial, industrial and agricultural steel buildings
Typical Applications
- Steel‑framed building construction
- Mezzanine floor steelwork including joist and perimeter beam connections
- Fixing purlins flush between RSJ / UC columns
- Attaching secondary steelwork to portal frame buildings
- Industrial and commercial structural steel frames
- Agricultural sheds, workshops and machinery buildings
- General purlin‑to‑column and rail‑to‑column connections
For pricing, please complete the order form below and email it to sales@steelroofsheets.co.uk. Our team will provide a tailored quotation based on your required sizes and quantities.
